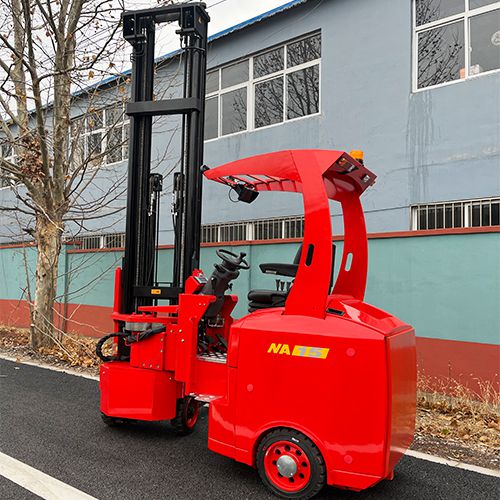

    NA Series

    • Capacity1500-3000 kg
    • Lift Height Of Rated Weight3000 mm
    • Travel Speed8-12 km/h
    Request a Quote
    Features
    • This electric forklift can work in extremely narrow channels with a minimum working width of 1700mm (depending on the forklift model and pallet size).
    • The rated load ranges from 1500kg to 3000kg.
    • The lifting height of this narrow aisle forklift can reach 12 meters.
    • With the design of open view mast and double front cylinders, this material handling equipment provides optimal visibility.
    • Standard front-end camera makes operation more accurate and efficient.
    • A new generation controller from Italy ZAPI is equipped as standard configuration, the use of the latest vector control algorithm leads to increased energy efficiency.
    • The large LED instrument panel features functions of power display, timing and fault diagnosis. Human-computer interaction interface enables operation more simple and efficient.
    • Narrow Aisle Forklift 1.5-3 Tonne
    • Narrow Aisle Forklift 1.5-3 Tonne

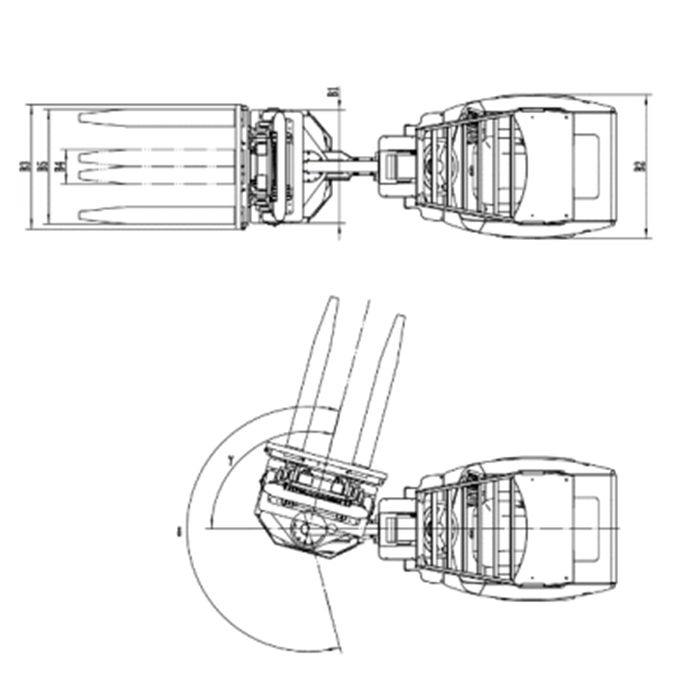

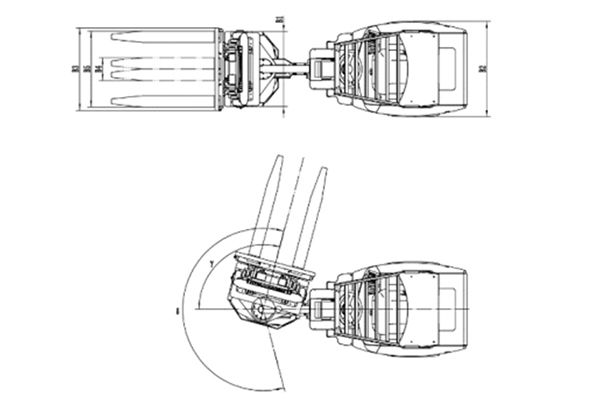

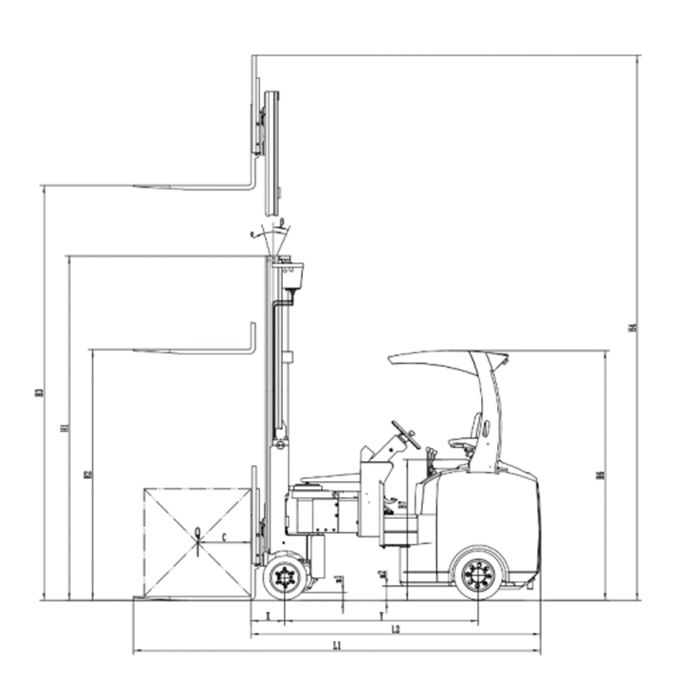

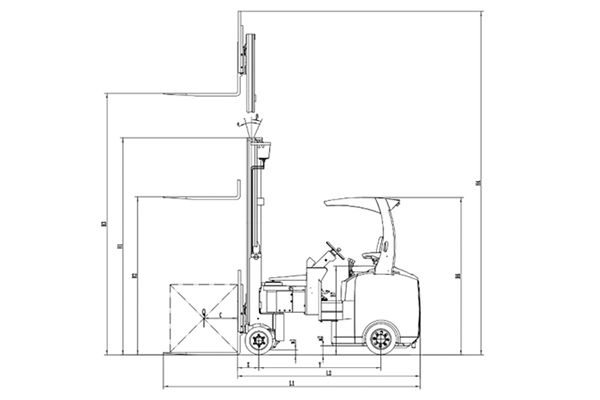

    Technical Specifications
    ItemPunits NA15 NA20 NA25 NA30
    Characteristics Capacity Rated capacity Q kg 1500 2000 2500 3000
    Load Center Standard load center distance C mm 500 500 500 500
    System System AC AC AC AC
    Power Battery Lithium battery Lead-acid/lithium battery Lead-acid/lithium battery Lead-acid/lithium battery
    Dimensions 3 Stage Free Lift Mast Mast lifting height h3 mm 4500-8200 4500-10000 4500-12400 4500-12400
    Lifting height of rated weight mm 3000 3000 3000 3000
    Mast tilt angle (forward/rear) α/β ° 1/3 1/3 1/3 1/3
    Forklift Size Total length (without fork) L2 mm 2715 2780 2800 2800
    Total width b1/b2 mm 1000 1200 1400 1600
    Overhead guard height h6 mm 2400 2400 2400 2400
    Fork T*W*L mm 40*122*960 40*122*960 40*122*960 45*122*960
    Fork carriage width b3 mm 880 1060 1060 1060
    Fork outside width (min.) b4 mm 244 244 244 244
    Fork outside width (max.) b5 mm 840 1020 1020 1020
    Min. Stacking Aisle Width Pallet lateral width 800*1200/1000*1200 mm 1600/1800 1800/2000 2000/2200 2200/2400
    Turning Angle Turning angle δ ° 210 210 210 210
    Tyre Size Front mm 412*127 412*178 412*178 412*178
    Rear mm 457*150 457*150 457*170 457*170
    Wheelbase Wheelbase Y mm 1812 1895 1895 1895
    Performance Travel Speed Load/no load km/h 10/12 10/12 10/12 8/11
    Lifting Speed Load/no load mm/s 350/430 350/430 330/400 330/400
    Lowering Speed Load/no load mm/s 400/340 400/340 400/340 400/340
    Gradeability Load/no load % 8/10 10/10 10/10 8/10
    Brake Mechanical/hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
    Manual Brake Mechanical/hydraulic Mechanical Mechanical Mechanical Mechanical
    Service Weight With battery kg 6500 6900 7200 7800
    Power Lead Acid Battery Electric tension/capacity V/Ah 48/420 80/330 80/400 80/500
    Lithium Battery Electric tension/capacity (optional) V/Ah 48/400 76.8/300 76.8/400 76.8/400
    Motor Drive motor kW 10 11 11 11
    Lifting motor kW 10 14 14 14
