Electric Forklift 2-4 Tonne

Electric Forklift 2-4 Tonne

T Series

  • Capacity2000-4000 kg
  • Lift Height3000 mm
  • Travel Speed17-18 km/h
  • Min. Turning Radius2240-2530 mm
Request a Quote
Features
Electric Forklift 2-4 Tonne
  • The forklift is equipped with a durable frame and the side cover is removable, which makes it more convenient to inspect and maintain the forklift.
  • The electrical system is integrated with other systems.
  • The steering wheel is user-friendly and eases operator arms and shoulders’ fatigue.
  • Equipped with the OPS device, the forklift prevents accidental operation when the operator is not seated at the cab.
  • Optional suspended seat is available. The suspended seat allows free movement and the adjustable backrest enhances comfort.
  • The mast is designed to provide a wide vision that guarantees driving experience.
Applications

Material handling in warehouses, logistics centers and distribution centers.

Electric Forklift 2-4 Tonne

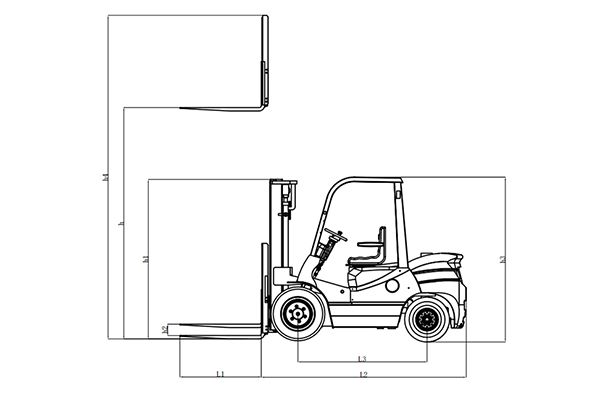

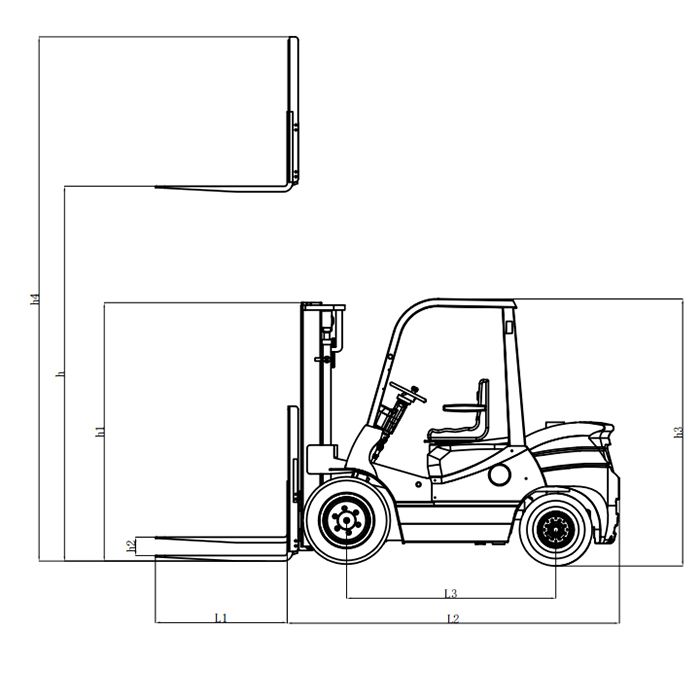

Technical Specifications
Model CPCD20 CPCD25 CPCD30 CPCD35 CPCD40
Characteristics Power Electric
Capacity kg 2000 2500 3000 3500 4000
Load Centre mm 500 500 500 500 500
Lift Height mm 3000 3000 3000 3000 3000
Min. Turning Radius mm 2240 2240 2445 2495 2530
Performance Travel Speed Load km/h 17 17 19 19 18
Lift Speed Load mm/s 500 500 450 450 380
Gradeability % 20 20 20 20 20
Dimensions Total Width With fork L1+L2 mm 3810 3810 3775 3820 3920
Without fork L2 mm 2650 2650 2705 2750 2850
Total Length mm 1160 1160 1225 1225 1225
Max. Lifting Height h4 mm 4220 4220 4265 4265 4275
Mast Height h mm 3000 3000 3000 3000 3000
Chassis Tyre Front 7.00-12-12PR 7.00-12-12PR 28×9-15-12PR 28×9-15-12PR 250-15-16PR
Rear 6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR
Wheelbase L3 mm 1600 1600 1700 1700 1800
Service Weight No load kg 3550 3750 4380 4680 5050
Power Battery Electric tension V 76.8 76.8 76.8 76.8 76.8
Capacity Ah 175 205 230 230 280
Motor Oil pump motor kW 12 12 12 12 14
Traction motor kW 10 10 10 10 13
