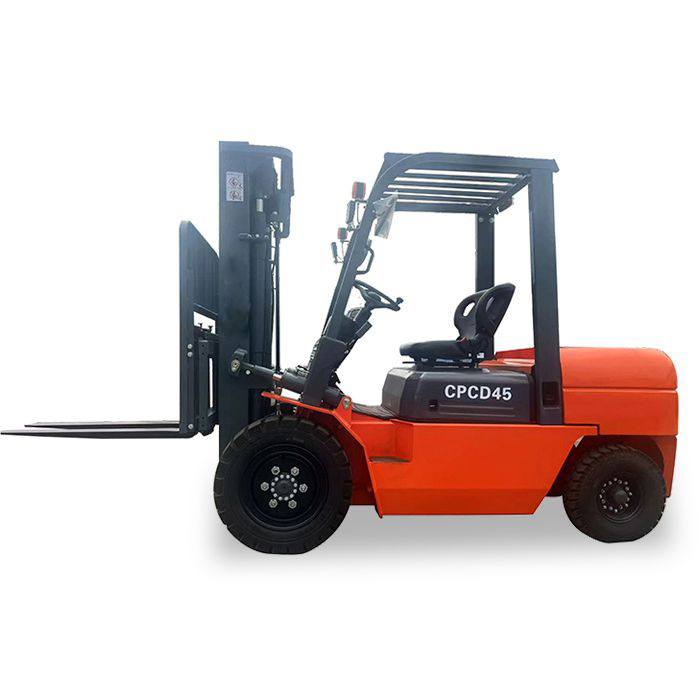

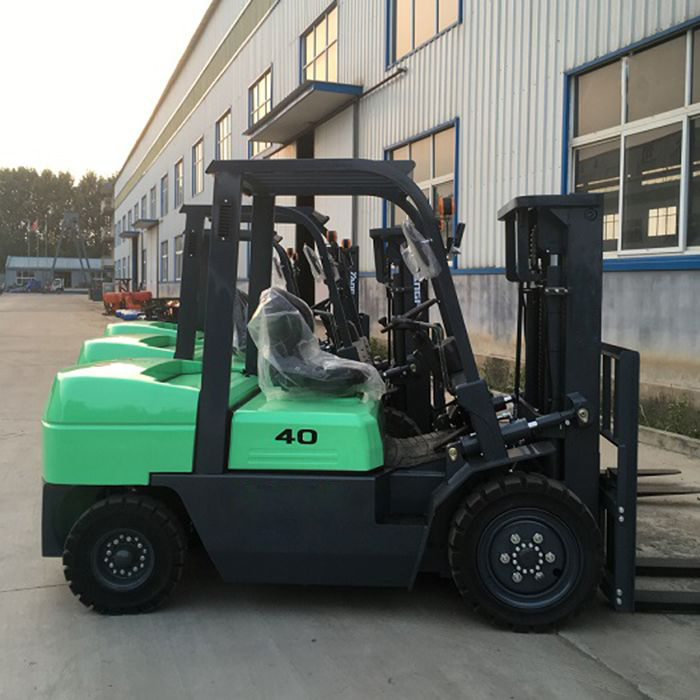

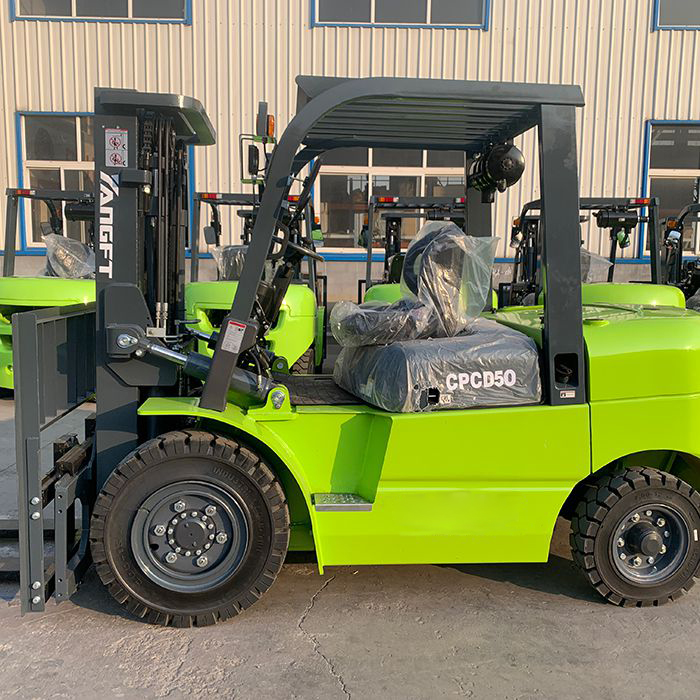

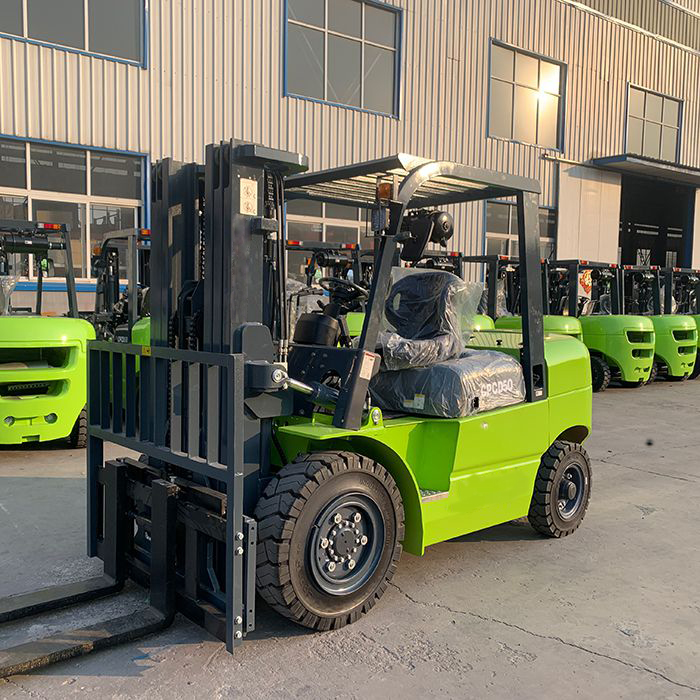

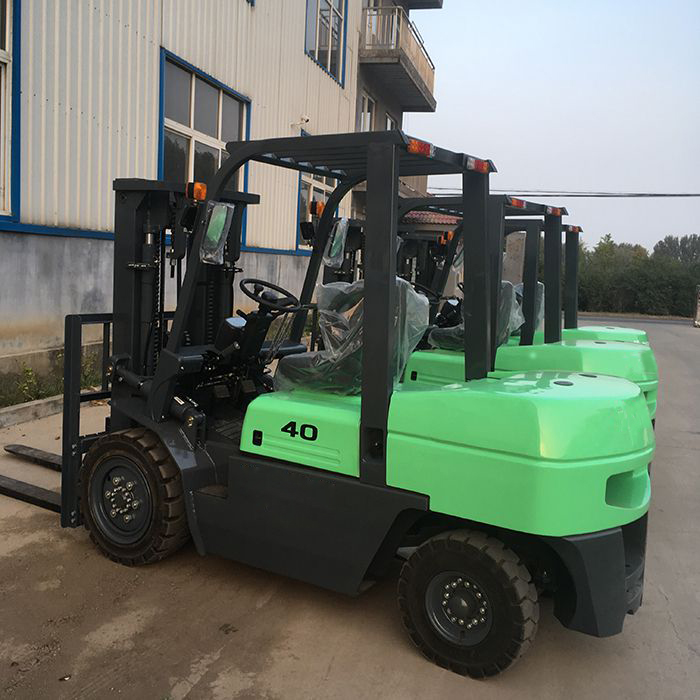

Diesel Forklift 4-5 Tonne
  • Diesel Forklift 4-5 Tonne
  • Diesel Forklift 4-5 Tonne
  • Diesel Forklift 4-5 Tonne
  • Diesel Forklift 4-5 Tonne
  • Diesel Forklift 4-5 Tonne

    • Diesel Forklift 4-5 Tonne

    K Series

    The diesel forklifts have the load capacity of 4 to 5 tons. The standard lifting height is 3 meters and the maximum customized lifting height is 6 meters, the industrial forklifts can be used to transport concrete and large equipment. The forklifts are available with optional China-made or imported engines, such as Isuzu and Mitsubishi engines from Japan.

    • Capacity4000-5000 kg
    • Lift Height3000 mm
    • Travel Speed22-24 km/h
    • Min. Turning Radius2470-3240 mm
    Request a Quote
    Features
    • Thanks to the hydraulic steering system, the forklift has a small turning radius which makes it convenient, flexible and safe to drive.
    • A panel at a low position and the wide-vision mast design provide drivers a broader view.
    • A trustworthy LCD panel and a user-friendly interplay enable driver to better control the forklift.
    Applications

    Material handling operation in factories, workshops and construction sites

    Technical Specifications
    Model CPC(D)40 CPC(D)45 CPC(D)50S CPC(D)50L
    Characteristics Power Diesel
    Capacity kg 4000 4500 5000 5000
    Load Centre mm 500 500 500 600
    Lift Height mm 3000 3000 3000 3000
    Min. Turning Radius mm 2470 2620 2800 3240
    Performance Travel Speed Load km/h 22 24 22 24
    Lift Speed Load mm/s 380 420 460 500
    Max. Gradeability % 20 20 20
    Dimensions Total Length With fork mm 4000 4120 4690
    Without fork mm 2930 3050 3139 3510
    Total Width mm 1290 1400 1480 1970
    Max. Height mm 4190 4220 4200 4600
    Mast Height mm 2130 2370 2270 2450
    Chassis Tyre Front 710NHS 300-15 300-15-20PR 8.25-15NHS
    Rear 660NHS 700-12 7.00-12-12PR 8.25-15NHS
    Wheelbase mm 1900 1900 2000 2250
    Service Weight No load kg 4950 5860 7100 8200
    Power Engine Model Quanchai/Xinchai
    What are the advantages of diesel forklifts with a load capacity of 4 tons?
    Equipped with powerful engines that feature low RPM, this type of diesel forklifts consumes less fuel. With a small turning radius, it can be used in limited space.
    What are the common applications of industrial forklifts?
    They are widely used to move materials in warehouses, construction sites, ports, waste disposal facilities, logistics centers and railways.
