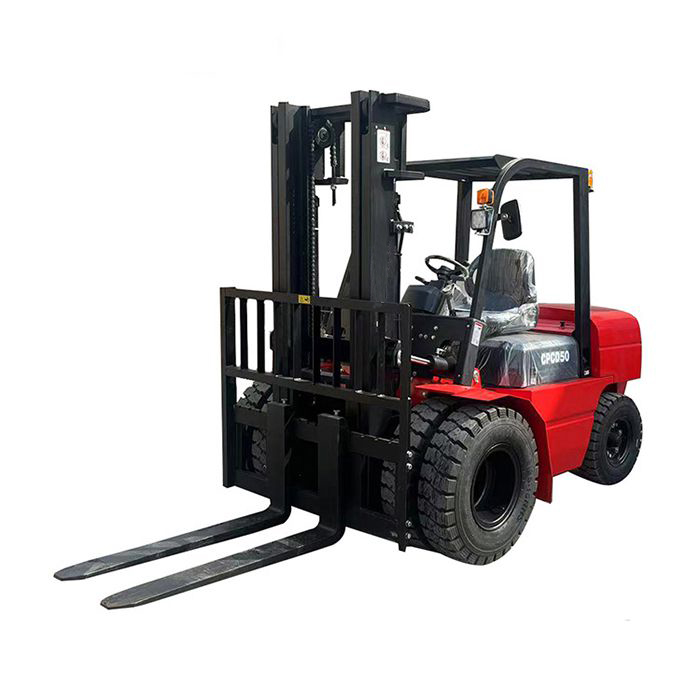

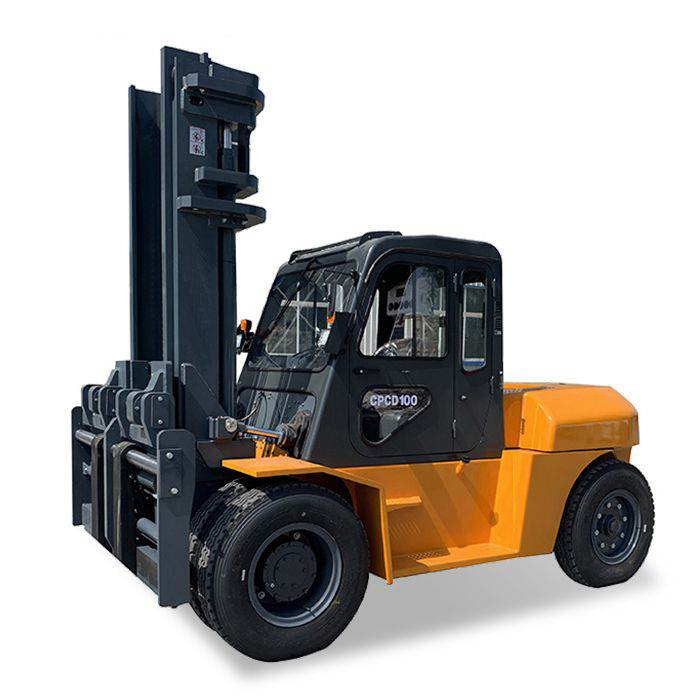

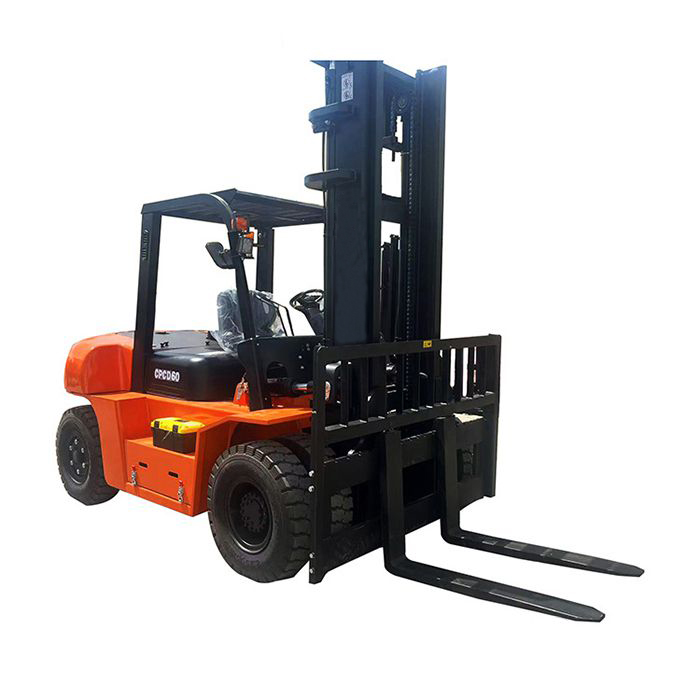

Diesel Forklift 5-10 Tonne
  • Diesel Forklift 5-10 Tonne
  • Diesel Forklift 5-10 Tonne
  • Diesel Forklift 5-10 Tonne

    • Diesel Forklift 5-10 Tonne

    K Series

    The forklifts feature a load capacity of 5-10 tons. The standard lifting height is 3 meters and the maximum customized lifting height is 6 meters. The intake and exhaust system and the cooling system have been optimized to improve service life of engines and guarantee reliability of forklifts. Optional China-made and imported engines are provided, such as Isuzu and Mitsubishi engines imported from Japan.

    • Capacity5000-10000 kg
    • Lift Height3000 mm
    • Travel Speed20-24 km/h
    • Min. Turning Radius3240-3650 mm
    Request a Quote
    Features
    • The design of short front overhang reduces the load of the front axle under fully loaded conditions, which greatly increases the service life of front tyres and the drive axle.
    • This type of diesel forklifts delivers high comprehensive performance and comfortable driving experience thanks to its unique design.
    Applications

    Material handling operation in factories, workshops and other work environments.

    Technical Specifications
    Model CPC(D)50L CPC(D)60 CPC(D)70 CPC(D)100
    Characteristics Power Diesel
    Capacity kg 5000 6000 7000 10000
    Load Centre mm 600 600 600 600
    Lift Height mm 3000 3000 3000 3000
    Min. Turning Radius mm 3240 3300 3370 3650
    Performance Travel Speed Load km/h 24 24 24 20
    Lift Speed Load mm/s 500 500 500 330
    Dimensions Total Length With fork mm 4690 4730 4780 5497
    Without fork mm 3510 3560 3600 4277
    Total Width mm 1970 1970 1970 2245
    Max. Height mm 4600 4600 4600 4293
    Mast Height mm 2450 2450 2450 2870
    Chassis Tyre Front 8.25-15NHS 8.25-15NHS 8.25-15NHS 9.00-20NHS
    Rear 8.25-15NHS 8.25-15NHS 8.25-15NHS 9.00-20NHS
    Wheelbase mm 2250 2250 2250 2800
    Service Weight No load kg 8200 8900 9600 12410
    Power Engine Model Quanchai/Xinchai
    What are the common types of industrial forklifts?

    In the material handling industry, the common types of forklifts are as follows:

    • Counterbalance forklifts
    • Rough terrain forklifts
    • LPG forklifts

    Different types of forklifts are suitable for different work environments. Please refer to our forklift recommendations for industries.
