Electric Forklift 3-3.5 Tonne
  • Electric Forklift 3-3.5 Tonne
  • Electric Forklift 3-3.5 Tonne
  • Electric Forklift 3-3.5 Tonne

    • Electric Forklift 3-3.5 Tonne

    K Series

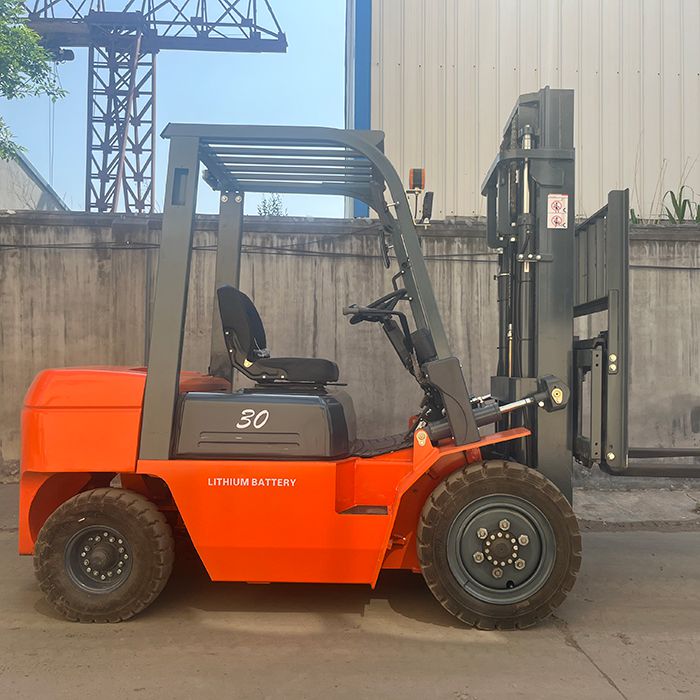

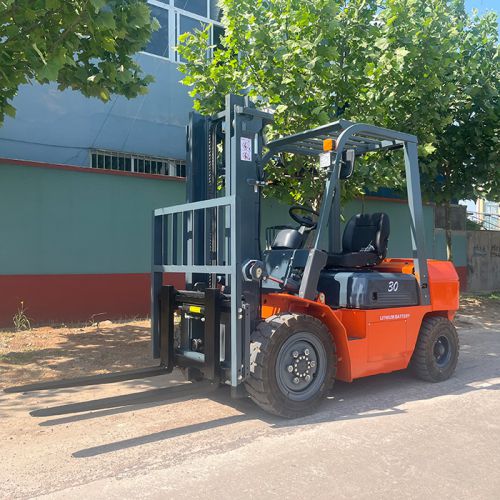

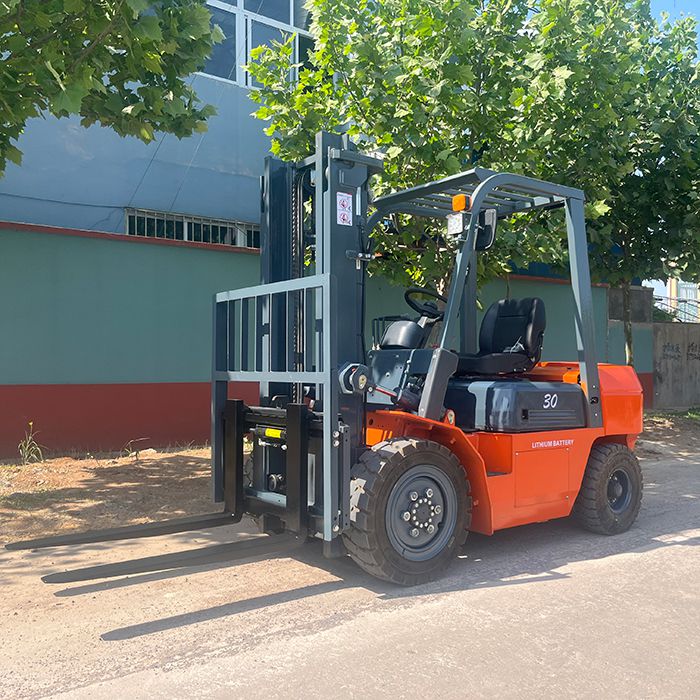

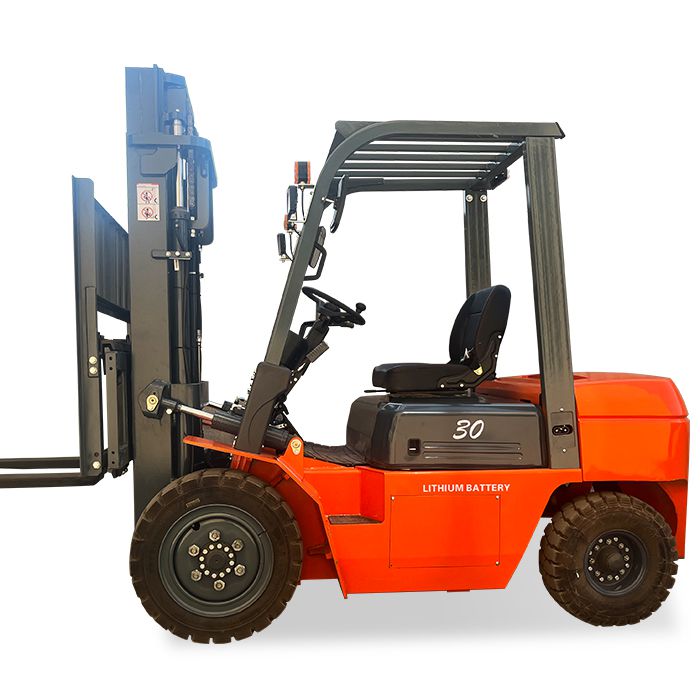

    The electric forklift is available with the load capacity of 3 to 3.5 tons. The standard lift height is 3 meters and the maximum customized lift height is 8 meters. With a multi-function LCD, the forklift enables operators to better control the vehicle.

    • Capacity3000-3500 kg
    • Lift Height3000 mm
    • Travel Speed13-14 km/h
    • Min. Turning Radius2400-2470 mm
    Request a Quote
    Features
    • Sophisticated controllers and motors are employed to prevent short circuit and open circuit.
    • With a small turning radius, the forklift can work in confined space and enable convenient operation.
    Applications

    Material handling in warehouses, logistics centers and distribution centers.

    Technical Specifications
    Model CPD30S CPD30L CPD35
    Characteristics Power Battery
    Capacity kg 3000 3300 3500
    Load Centre mm 500 500 500
    Lift Height mm 3000 3000 3000
    Min. Turning Radius mm 2400 2470 2470
    Performance Travel Speed Load/no load km/h 13/14 13/14 13/14
    Lift Speed Load/no load mm/s 290/420 290/420 290/420
    Dimensions Total Length Without fork mm 2700 2800 2800
    Total Width mm 1225 1225 1225
    Max. Lifting Height With backrest mm 4265 4265 4265
    Mast Height mm 2100 2100 2100
    Chassis Tyre Front 28x9-15 28x9-15 28x9-15
    Rear 6.50-10 6.50-10 6.50-10
    Wheelbase mm 1700 1800 1800
    Service Weight No load kg 4350 4300 4605
    Power Battery Electric tension V 76.8
    Capacity Ah 230
    Motor Drive motor kW 10
    Oil pump motor kW 12
    What are the advantages of electric forklifts?
    • Electric forklifts deliver outstanding material handling performance, with the advantages of high energy efficiency, stable operation and ease of maintenance.
    • They meet the requirements of load capacity and lift height while realizing zero mission and less noise pollution.
    • They can be used in medical and pharmaceutical industries, as well as frozen food transportation.
