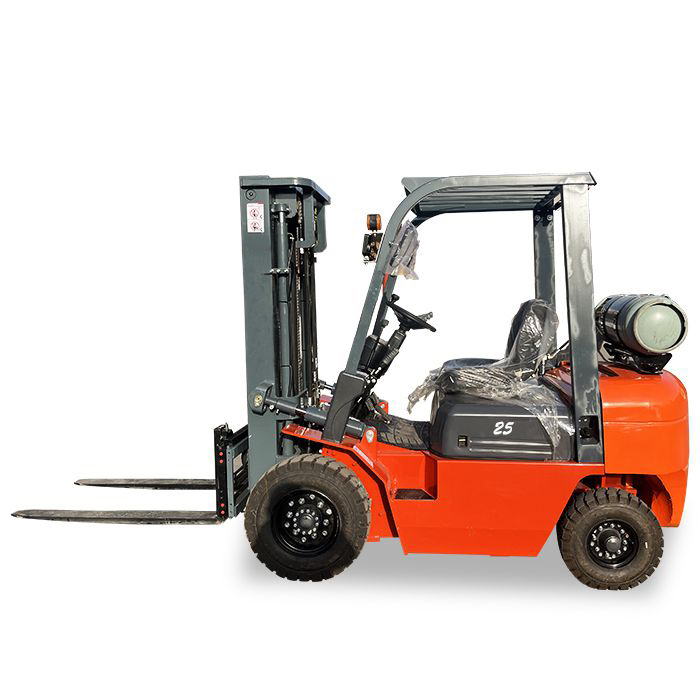

Gasoline/LPG Forklift 2-4 Tonne

Gasoline/LPG Forklift 2-4 Tonne

K Series

The 4-cylinder LPG forklifts have the load capacity of 2 to 4 tons. The standard lift height is 3 meters and the maximum customized lift height is 8 meters. This type of compact forklifts is widely used in limited space, such as factories and workshops.

  • Capacity2000-4000 kg
  • Lift Height3000 mm
  • Travel Speed19-22 km/h
  • Min. Turning Radius2190-2470 mm
Request a Quote
Features
  • The mast has been enhanced for durability and reliability, with a design that ensures a broad vision for drivers.
  • Drivers can have better control over the forklift thanks to the LCD panel and user-friendly interface.
  • The new steering wheel structure greatly improves comfort and adjustment reliability.
Applications

Material handling in factories and workshops.

Technical Specifications
Model CPC(D)20 CPC(D)25 CPC(D)30S CPC(D)30L CPC(D)35 CPC(D)40
Characteristics Power Gasoline/LPG
Capacity kg 2000 2500 3000 3300 3500 4000
Load Centre mm 500 500 500 500 500 500
Lift Height mm 3000 3000 3000 3000 3000 3000
Min. Turning Radius mm 2190 2240 2400 2470 2470 2470
Performance Travel Speed Load km/h 19 19 20 20 20 22
Lift Speed Load mm/s 500 500 480 480 480 480
Max. Traction Power Load KW 17 18 20 22 22 22
Dimensions Total Length With fork mm 3600 3650 3770 3870 3870 3970
Without fork mm 2530 2580 2700 2800 2800 2900
Total Width mm 1160 1160 1225 1225 1225 1225
Max. Height mm 4220 4220 4265 4265 4265 4265
Mast Height mm 2100 2100 2100 2100 2100 2100
Chassis Tyre Front 7.00-12 7.00-12 28x9-15 28x9-15 28x9-15 250-15
Rear 6.00-9 6.00-9 6.50-10 6.50-10 6.50-10 6.50-10
Wheelbase mm 1600 1600 1700 1800 1800 1900
Service Weight No load kg 3530 3880 4350 4300 4605 5020
Power Engine Model Xinchai
Rated power kW/r.p.m 36.8/2500 36.8/2500 36.8/2500 36.8/2500 36.8/2500 36.8/2500
Rated torque Nm/r.p.m 156/1700-1900 156/1700-1900 156/1700-1900 156/1700-1900 180-190/1800-2000 180-190/1800-2000
Cylinders 4 4 4 4 4 4
