    L Series

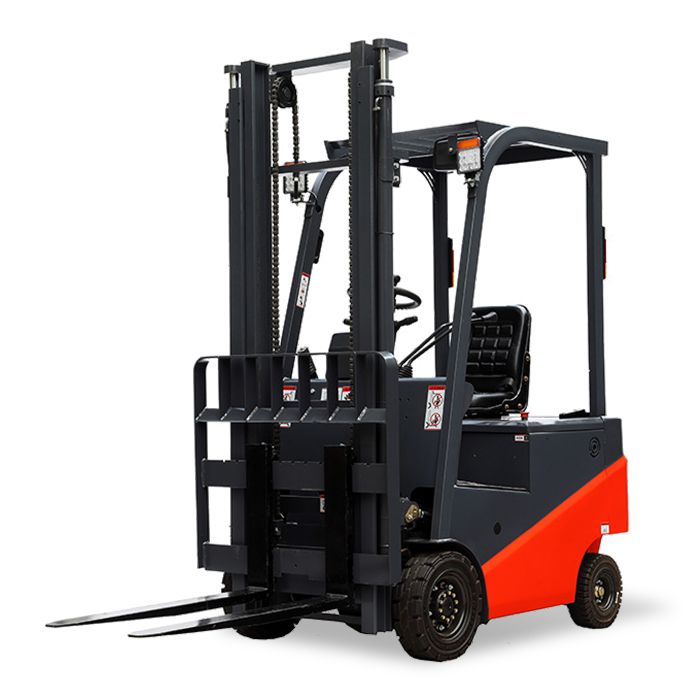

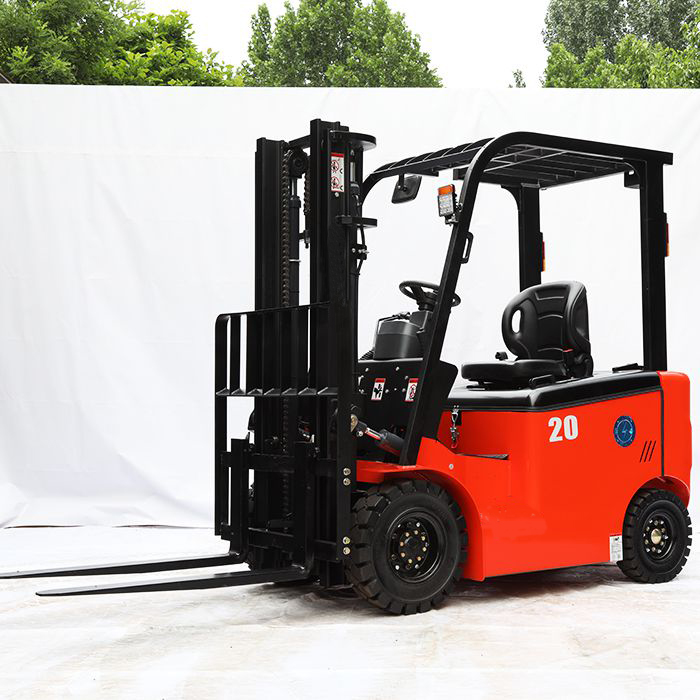

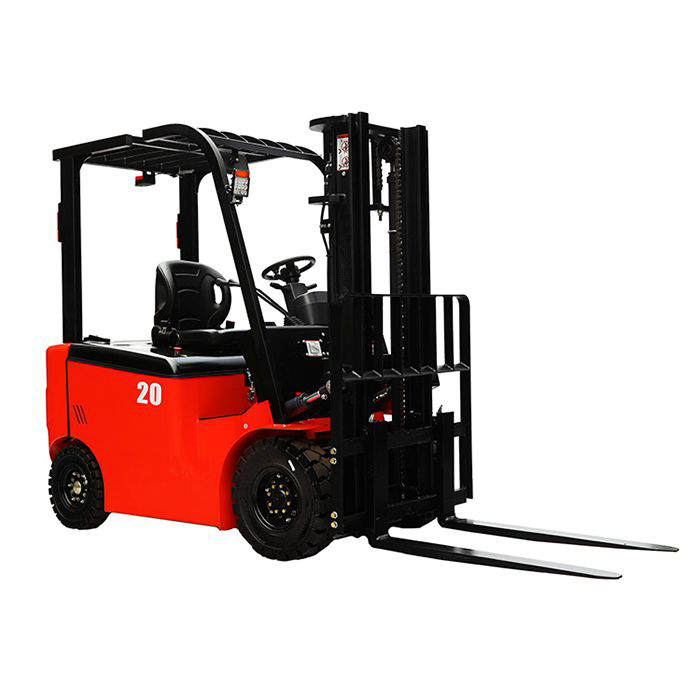

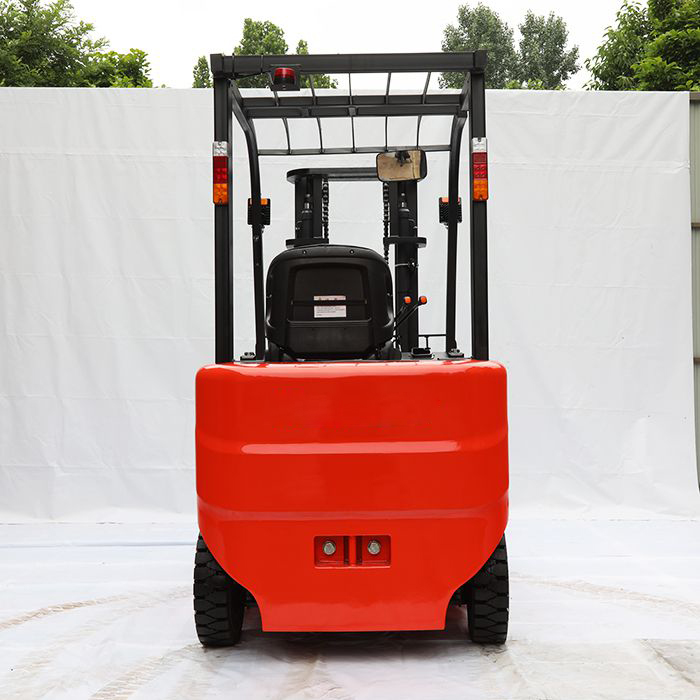

    The light-duty material handing forklift is suitable for confined space thanks to its compact design and the kerb weight of 2450 kg. In the full loaded conditions, its travel speed can reach 15 km/h.

    • Capacity1000-2500 kg
    • Lift Height3000 mm
    • Travel Speed11-15 km/h
    • Min. Turning Radius1650-2050 mm
    Request a Quote
    Features
    • The electric forklift adopts the neutral safety switch to prevent accidental startups.
    • The forklift is equipped with an advanced control system that enables sophisticated speed control and torque control protection to realize efficient heat dissipation.
    Applications

    Material handling in limited space, such as warehouses, logistics centers and delivery centers.

    Technical Specifications
    Model CPD10 CPD15 CPD20 CPD25
    Characteristics Power Battery
    Capacity kg 1000 1500 2000 2500
    Load Centre mm 400 500 500 500
    Lift Height mm 3000 3000 3000 3000
    Min. Turning Radius mm 1650 2050 2050 2050
    Performance Travel Speed Load/no load km/h 11/13 13/15 13/15 13/15
    Lift Speed Load/no load mm/s 100/250 315/335 315/335 315/335
    Dimensions Total Length Without fork mm 1655 2155 2155 2155
    Total Width Wheel mm 920 1060 1060 1060
    Chassis mm 930 1088 1088 1088
    Max. Height mm 3870 4100 4100 4100
    Mast Height mm 2060 2000 2000 2000
    Chassis Tyre Front 15*4 1/2-8 650-10 650-10 650-10
    Rear 3.50-5 500-8 500-8 500-8
    Wheelbase mm 1045 1425 1425 1425
    Service Weight No load kg 2450 2450 2450 2450
    Power Battery Voltage/capacity V/Ah 48V/225AH 48V/225AH 48V/400AH 48V/480AH
    Motor Drive motor kW 4 5.5 6.5 6.5
    Pump motor kW 4 5.5 6.5 7.5
    Why are electric forklifts getting popular?
    • The light-duty electric forklift adopts a compact design to offer flexible material handling solutions in complex and confined space.
    • With less exhaust emission, the electric forklift can secure drivers’ health.
    • The forklift allows for quiet operation since it produces less noise.
    • Lower operational and maintenance costs make the electric forklift increasingly popular in various industries.
    What are the advantages of this 48V electric forklift?
    The light-duty electric forklift is suitable for indoor and outdoor operation. With enhanced safety measures and a compact design, the forklift can protect drivers and goods from bumping during work.
