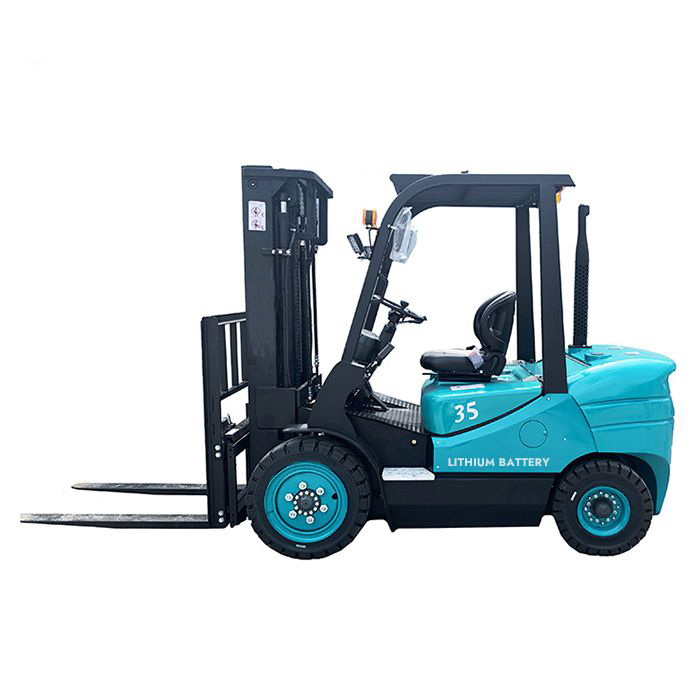

Electric Forklift 2-4 Tonne
  • Electric Forklift 2-4 Tonne
  • Electric Forklift 2-4 Tonne

    • Electric Forklift 2-4 Tonne

    C Series

    • Capacity2000-4000 kg
    • Lift Height3000 mm
    • Travel Speed19-20 km/h
    • Min. Turning Radius2410-2610 mm
    Request a Quote
    Features
    • The forklift is made of high-strength materials and enjoys longer service life.
    • Optional suspended seat is provided. The suspended seat allows free movement and the adjustable backrest provides comfortable driving experience.
    • The forklift has the advantages of a compact design, a low center of gravity and a small turning radius, which ensures safe and stable material handling function.
    • Equipped with the OPS device, the forklift prevents accidental operation and secures safety.
    • The mast and the steering axle employ a shock absorption design to smooth out shock impetus.
    Applications

    Material handling tasks in warehouses, logistics centers and delivery centers.

    • Electric Forklift 2-4 Tonne
    • Electric Forklift 2-4 Tonne
    Technical Specifications
    Model CPD20 CPD25 CPD30 CPD35 CPD40
    Characteristics Power Battery
    Capacity kg 2000 2500 3000 3500 4000
    Load Centre mm 500 500 500 500 500
    Lift Height h mm 3000 3000 3000 3000 3000

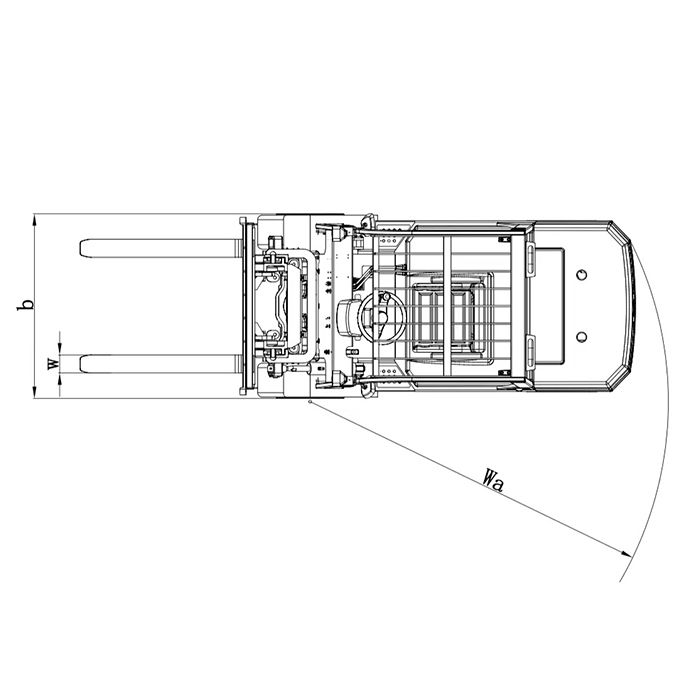

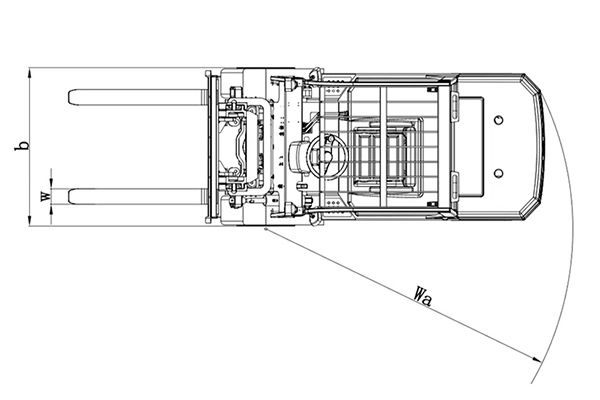

    Min. Turning Radius Wa mm 2410 2410 2450 2410 2850
    Performance Travel Speed Load km/h 20 20 20 20 19
    Lift Speed Load mm/s 450 450 450 450 400

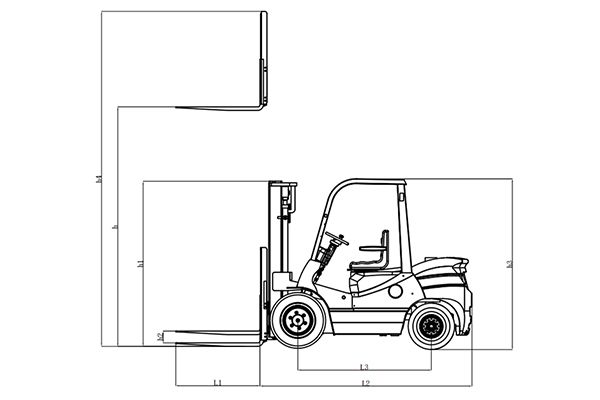

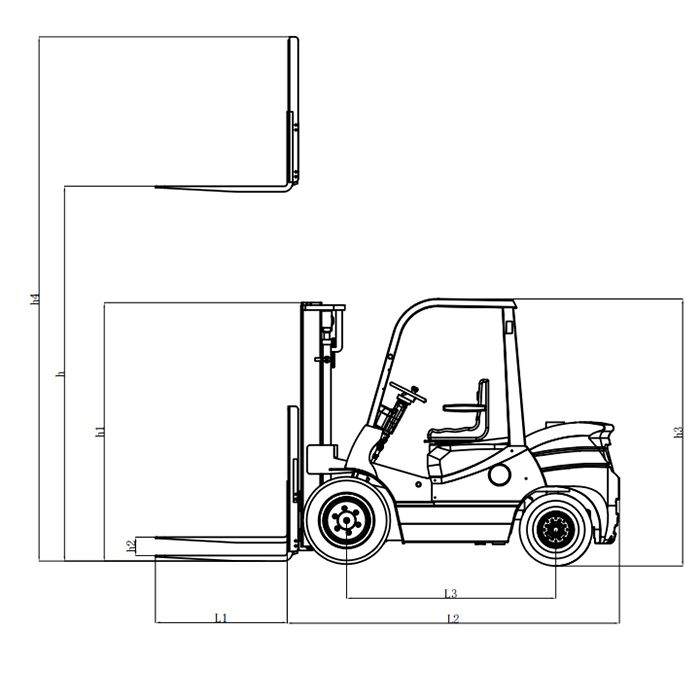

    Dimensions Total Length Without fork L2 mm 2700 2700 2700 2700 2985
    Total Width b mm 1160 1160 1225 1225 1360
    Max. Lifting Height h4 mm 4245 4245 4265 4265 4315
    Mast Height h1 mm 2070 2100 2115 2115 2195
    Chassis Tyre Front 7.00-12-12PR 7.00-12-12PR 28*9-15-12PR 28*9-15-12PR 250-15-20PR
    Rear 6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR 7.00-12-12PR
    Wheelbase L2 mm 1700 1700 1700 1700 1860
    Service Weight No load kg 3550 3750 4260 4550 5050
    Power Battery Electric tension V 76.8 76.8 76.8 76.8 76.8
    Capacity Ah 175 205 230 230 300
    Motor Drive motor kW 10 10 10 10 13
    Oil pump motor kW 12 12 12 12 14
