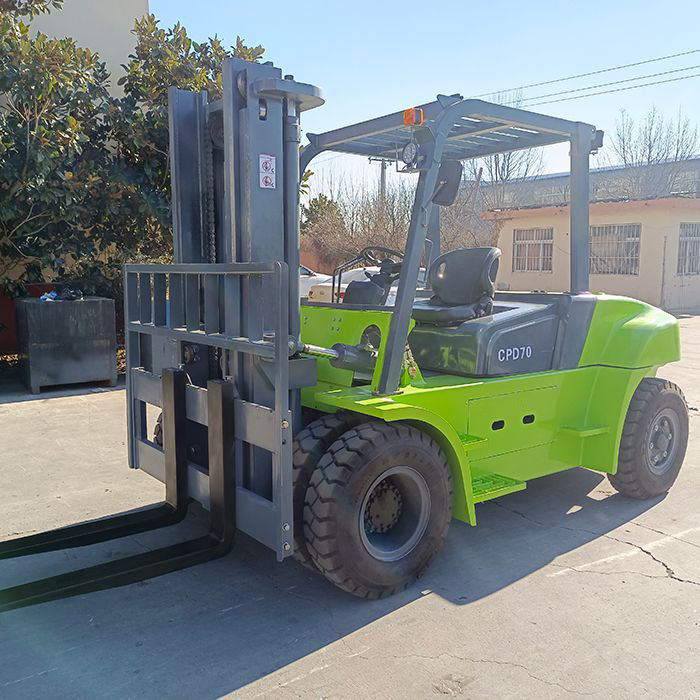

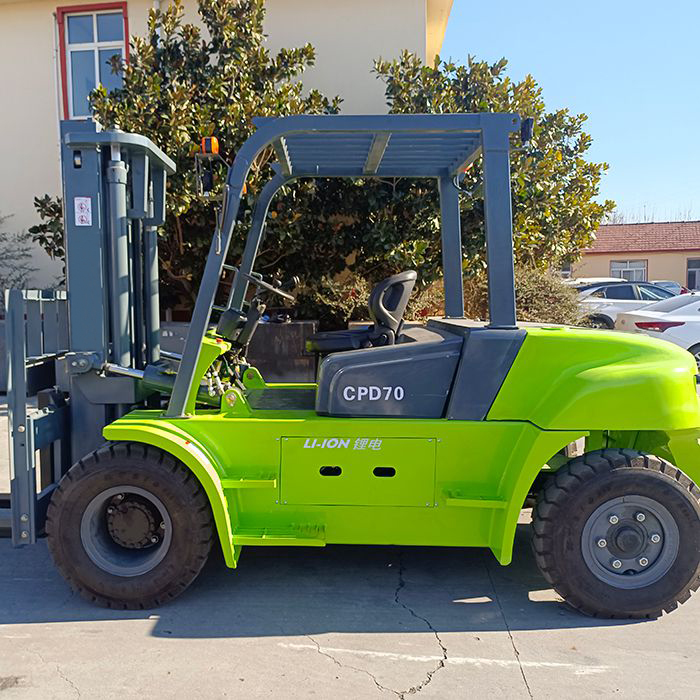

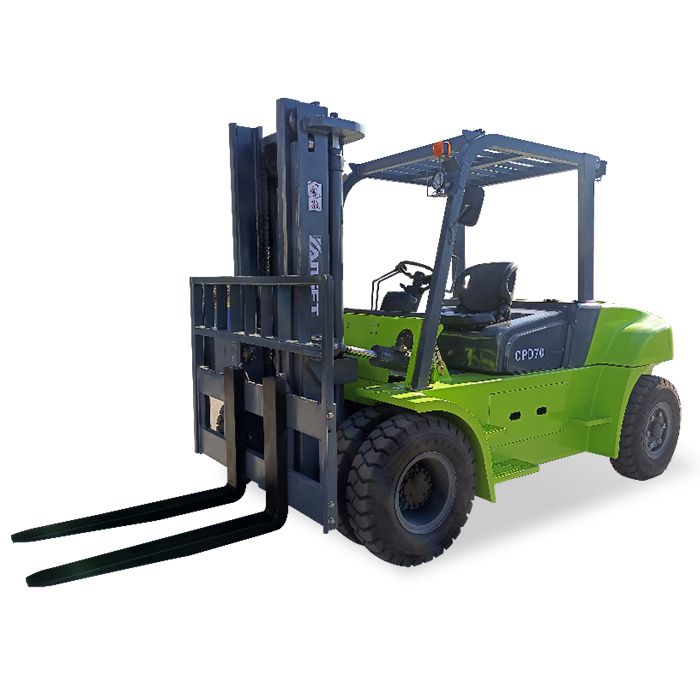

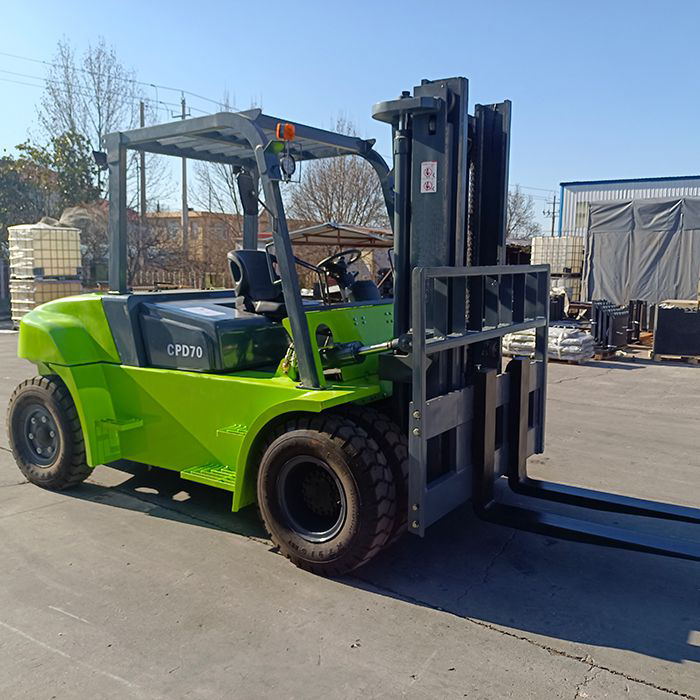

Electric Forklift 5-10 Tonne
  • Electric Forklift 5-10 Tonne
  • Electric Forklift 5-10 Tonne
  • Electric Forklift 5-10 Tonne
  • Electric Forklift 5-10 Tonne

    • Electric Forklift 5-10 Tonne

    K Series

    The heavy-duty electric forklifts have the load capacity of 5 to 10 tons. The standard lifting height is 3 meters and the maximum customized lifting height is 6 meters. With a simplified brake system, this equipment reduces wear among components and extends its service life.

    • Capacity5000-10000 kg
    • Lift Height3000 mm
    • Travel Speed14-16 km/h
    • Min. Turning Radius3250-4080 mm
    Request a Quote
    Features
    • The electric forklift adopts an integrated transmission system and the gearbox oil can lubricate gears, which greatly reduces maintenance costs.
    • The integrated design increases the forklift strength by 20%, which ensures drivers’ safety and enables the forklift to work in uneven and winding paths and carry out demanding and high-intensity material handling tasks.
    Applications

    Heavy material handling in warehouses, logistics centers and distribution centers.

    Technical Specifications
    Model CPD50L CPD60 CPD70 CPD80 CPD100
    Characteristics Power Lithium battery
    Capacity kg 5000 6000 7000 8000 10000
    Load Centre mm 600 600 600 600 600
    Lift Height mm 3000 3000 3000 3000 3000
    Min. Turning Radius Inner side mm 3250 3250 3370 3700 4080
    Performance Travel Speed Load/no load km/h 14/16 14/16 14/16 14/16 14/16
    Lift Speed Load/no load mm/s 360/400 360/400 340/380 280/300 280/300
    Dimensions Total Length Without fork mm 3560 3560 3600 3830 4260
    Total Width mm 1995 1995 1995 2100 2240
    Max. Lifting Height mm 3750 3750 3750 4050 4320
    Mast Height mm 2500 2500 2500 2870 2840
    Chassis Tyre Front 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR 8.25-20-14PR 9.00-20-16PR
    Rear 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR 8.25-20-14PR 9.00-20-16PR
    Wheelbase mm 2250 2250 2250 2500 2800
    Service Weight No load kg 7800 8500 9200 10200 12000
    Power Battery Electric tension V 80
    Capacity Ah 700
    Motor Drive motor kW 25
    Hydraulic motor kW 2*21 2*26
    Which is better, lead-acid batteries or lithium batteries?
    It’s better to use lithium batteries since they have longer service life, higher charging speed, with zero emissions and low maintenance costs.
