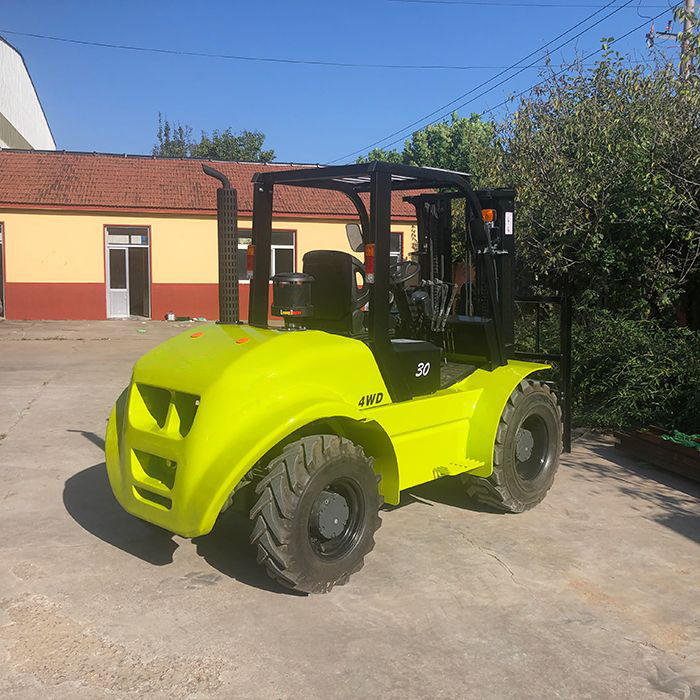

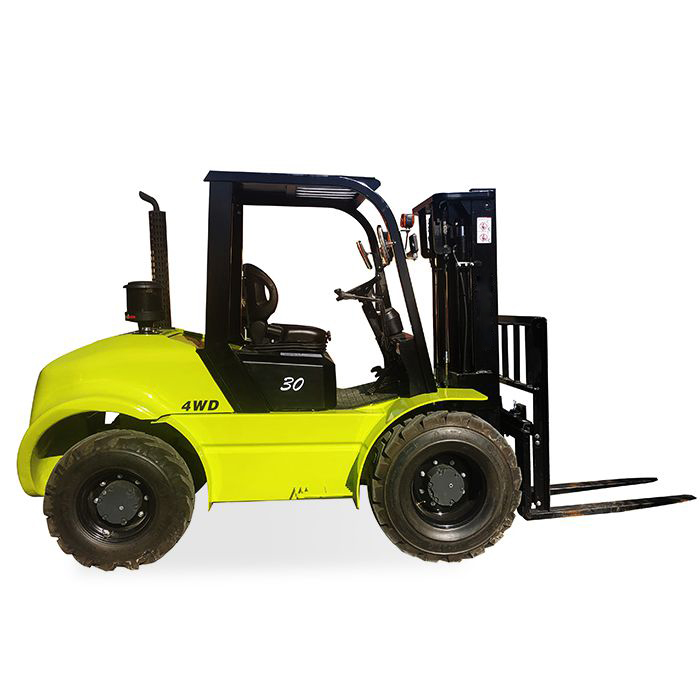

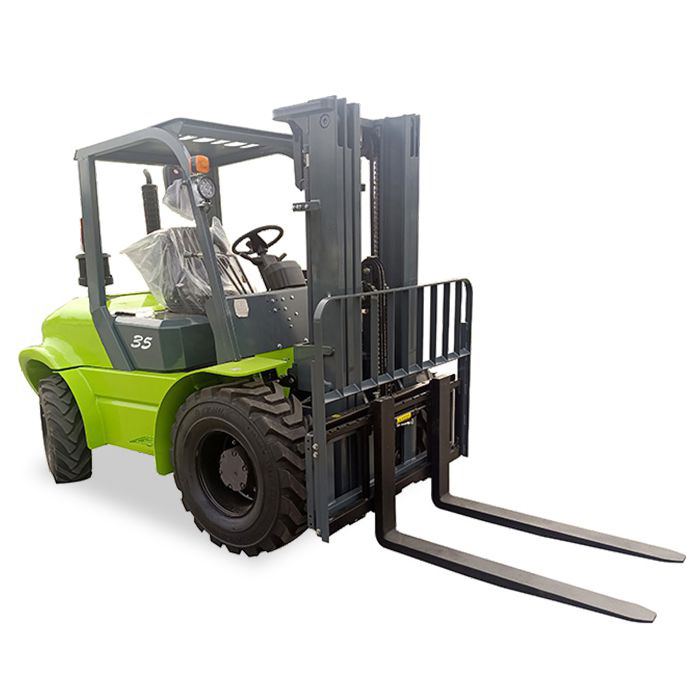

4-Wheel Drive Rough Terrain Forklift 3-4 Tonne
  • 4-Wheel Drive Rough Terrain Forklift 3-4 Tonne
  • 4-Wheel Drive Rough Terrain Forklift 3-4 Tonne
  • 4-Wheel Drive Rough Terrain Forklift 3-4 Tonne

    • 4-Wheel Drive Rough Terrain Forklift 3-4 Tonne

    F Series

    • Capacity3000-4000 kg
    • Lift Height3000 mm
    • Travel Speed20 km/h
    • Min. Turning Radius3120 mm
    Request a Quote
    Features
    • The new model of rough terrain forklifts features strong climbing capability, reliable shock absorption function and quick lifting ability.
    • The cooling system has been upgraded with advanced technology to achieve efficient heat dissipation and satisfy the needs of continuous operation.
    • The mast design that offers a wide view enhances operational stability and safety in outdoor environments.
    Applications

    Material handling jobs in farms, mine, airports, ports, train stations and complex outdoor terrains.

    • 4-Wheel Drive Rough Terrain Forklift 3-4 Tonne
    • 4-Wheel Drive Rough Terrain Forklift 3-4 Tonne

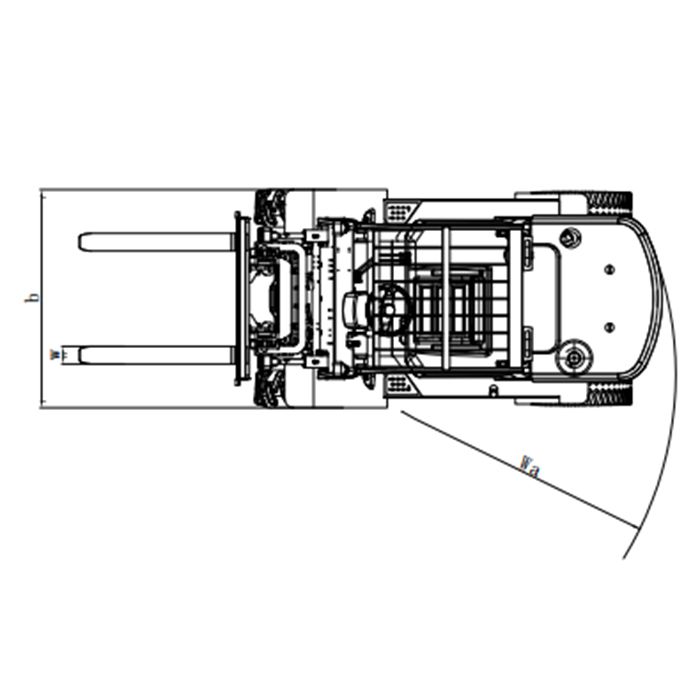

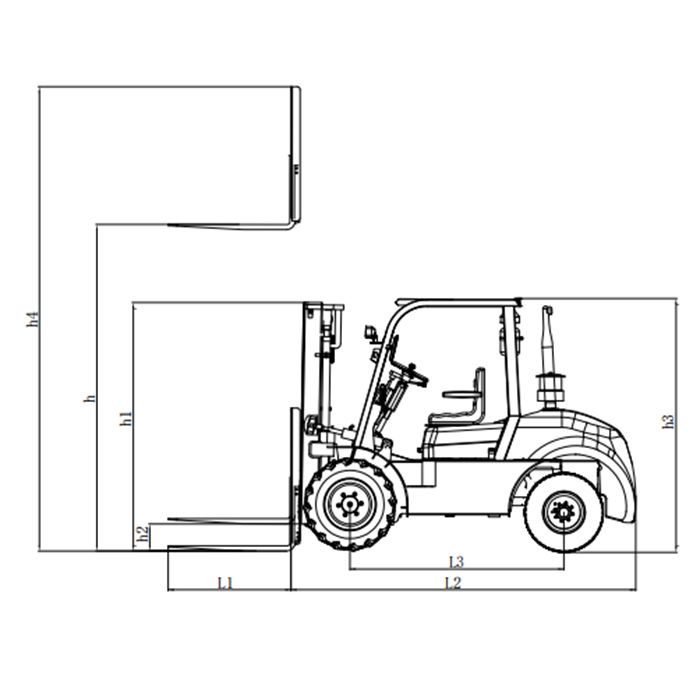

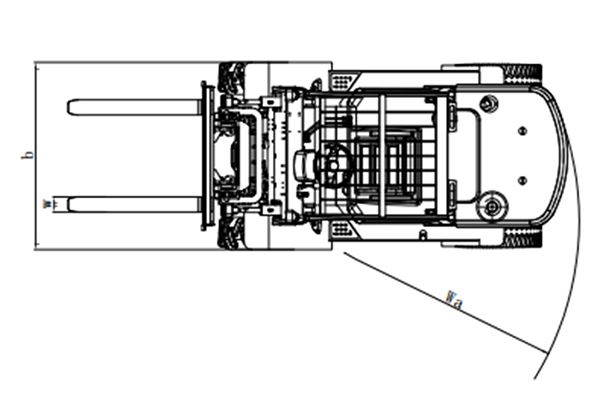

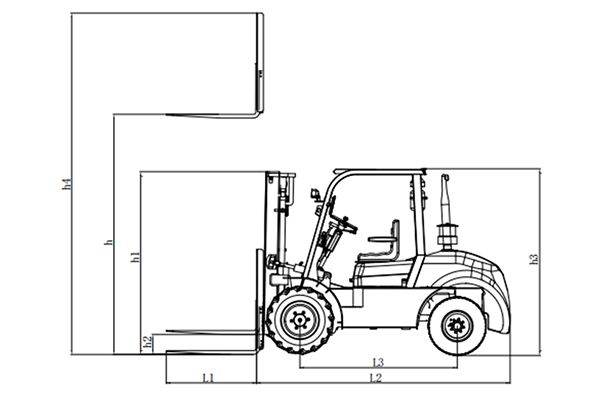

    Technical Specifications
    Model FD30-F FD35-F FD40-F
    Characteristics Power
    Capacity kg 3000 3500 4000
    Load Centre mm 500 500 500
    Lift Height h mm 3000 3000 3000
    Min. Turning Radius Wa mm 3120 3120 3120
    Performance Travel Speed Load km/h 20 20 20
    Lift Speed Load mm/s 530 480 480
    Dimension Total Length With fork L1+L2 mm 4136 4151 4151
    Without fork h1 mm 3081 3081 3081
    Total Width b mm 1600 1600 1600
    Max. Lifting Height h4 mm 4350 4350 4350
    Mast Height h1 mm 2235 2235 2235
    Chassis Tyre Front 14-17.5-14PR 14-17.5-14PR 14-17.5-14PR
    Rear 10.0/75-15.3 10.0/75-15.3 10.0/75-15.3
    Wheelbase L3 mm 1880 1880 1880
    Service Weight No load Kg 5250 5545 5800
    Power Engine Model A498BPG A498BPG A498BPG
    Rated power kW/r 45/2500 45/2500 45/2500
    Rated torque Nm/r.p.m 193/1600-1800 193/1600-1800 193/1600-1800
