2-Wheel Drive Rough Terrain Forklift 2.5-4 Tonne
  • 2-Wheel Drive Rough Terrain Forklift 2.5-4 Tonne
  • 2-Wheel Drive Rough Terrain Forklift 2.5-4 Tonne
  • 2-Wheel Drive Rough Terrain Forklift 2.5-4 Tonne
  • 2-Wheel Drive Rough Terrain Forklift 2.5-4 Tonne

    • 2-Wheel Drive Rough Terrain Forklift 2.5-4 Tonne

    S Series

    • Capacity2500-4000 kg
    • Lift Height3000 mm
    • Travel Speed22 km/h
    • Min. Turning Radius2910-2930 mm
    Request a Quote
    Features
    • Large deep-tread tyres deliver an excellent performance in terms of climbing and shock absorption.
    • The mast design that offers a wide view enhances operational stability and safety in outdoor environments.
    • Optional suspended seat is available. A suspended seat and the adjustable steering wheel greatly improve comfort.
    • Equipped with the OPS device, the forklift prevents accidental operation and secures safety.
    • The cooling system has been upgraded with advanced technology to achieve efficient heat dissipation and satisfy the needs of continuous operation.
    • The substantial ground clearance allows forklifts to tackle challenging outdoor conditions with ease.
    • The hydraulic system is at the front part of the forklift, which conforms to the ergonomic concepts.
    Applications

    Material handling jobs in farms, mine and complex outdoor terrains.

    • 2-Wheel Drive Rough Terrain Forklift 2.5-4 Tonne
    • 2-Wheel Drive Rough Terrain Forklift 2.5-4 Tonne
    Technical Specifications

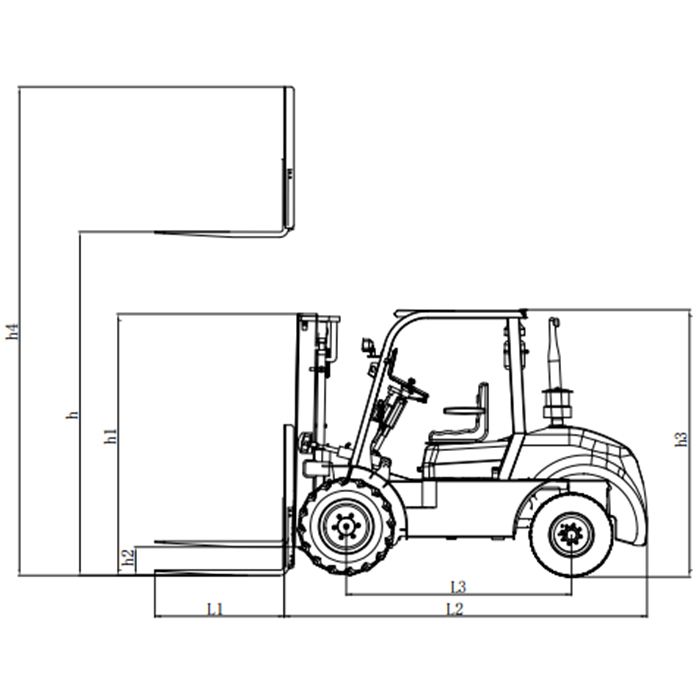

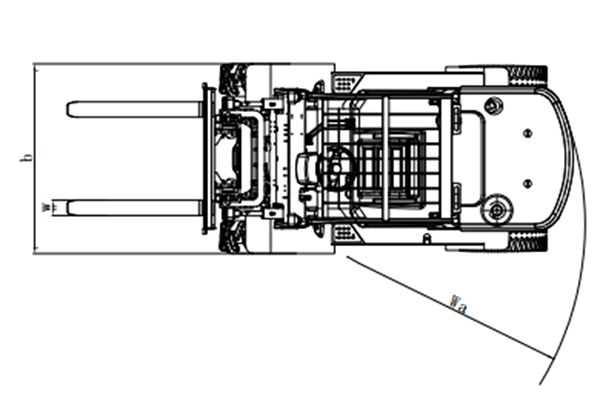

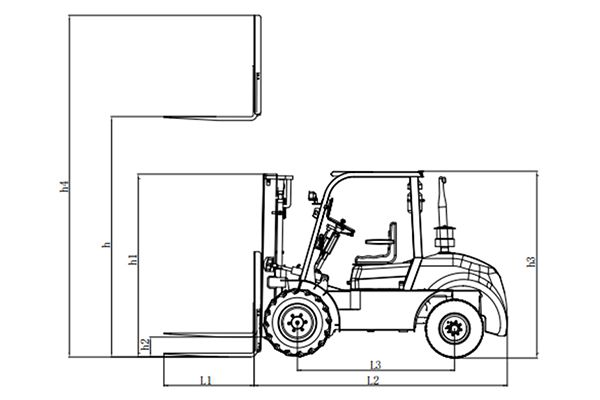

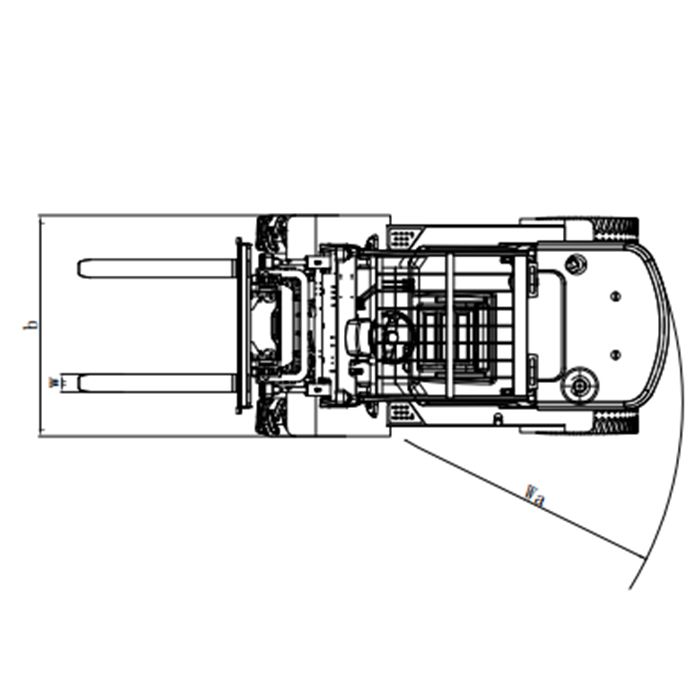

    Model FD25-S FD30-S FD35-S FD40-S
    Characteristics Power Diesel
    Capacity kg 2500 3000 3500 4000
    Load Centre mm 500 500 500 500
    Lift Height h mm 3000 3000 3000 3000
    Min. Turning Radius Wa mm 2910 2910 2910 2930
    Performance Travel Speed Load km/h 22 22 22 22
    Lift Speed Load mm/s 450 440 420 420
    Dimensions Total Length Without fork L2 mm 2940 2940 2940 2980
    Total Width b mm 1550 1550 1550 1550
    Mast Height h1 mm 2230 2230 2230 2230
    Chassis Tyre Front 12-16.5-14PR 12-16.5-14PR 12-16.5-14PR 14-17.5-16PR
    Rear 27x10.5-15PR 27x10.5-15PR 27x10.5-15PR 10-16.5-12PR
    Wheelbase L3 mm 1850 1850 1850 1850
    Service Weight No load kg 4650 4800 4950 5200
    Power Engine Model C495BPG C495BPG C495BPG A498BPG
    Rated power kW/r 42kW/2650r/min 42kW/2650r/min 42kW/2650r/min 45kW/2500/min
    Rated torque Nm/r 174N.m/1800-2000r/min 174N.m/1800-2000r/min 174N.m/1800-2000r/min 193N.m/1600-1800r/min
